300P with front roller

T-SEM 400AP

T-SEM 300 & 400 Pneumatic



Combining the well known simplicity and versatility of the T-SEM system, with the latest in cutting-edge seed distribution technology. The T-SEM Pneumatic offers all the benefits of owning a seed drill with direct drilling capability, coupled with the user friendliness of a pneumatic seeding system.

We have chosen the latest in seed metering and distribution technology from Sulky for the T-SEM Pneumatic. A large big bag friendly hopper, electronic monitoring with tramline control and the ability to simply and quickly open or close individual rows, makes this a truly winning combination.

Pilot electronic metering adds a further level of control and ease of operation. On-the-move seed rate adjustment and fast calibration are just two of the features of this user friendly system.

The inverted T-slot system starts with a row of straight discs that open the slot in advance of 3 rows of spring-tine mounted coulters. These prepare a trash-free inverted T-slot, the perfect seedbed for both germination and establishment. For use on ploughed or cultivated ground the discs can be replaced with a ‘Pneuflex’ roller to firm the land ahead of the coulters.

At the rear of the drill is a ‘Springflex’ roller which passes between the rows, followed by a chain or z-tine harrow which crumbles and levels without over-firming the slot itself.

You can sow any seed into any surface - clovers, grasses, brassicas, cereals, pulses, maize and all mixtures into grassland, stubbles, ploughed and cultivated land or direct into standing cover crops.

Click here to see how the inverted T-Slot works

Click here to see how the ADS metering system works



Unfortunately you have JavaScript disabled.
Our videos & Tutorials section uses JavaScript to display our videos, please enable JavaScript to view these.

If you do not know how to enable JavaScript for your browser Please click here

300/300AP
Technical details

Transport width 3.00m
Sowing width 3.00m
No. of tines 20/16
Row spacing 15.00/18.75cms
Total weight 1850/1800kgs
Hopper capacity 1000lts
Power requirement 100 hp

Optional extras:

Pilot electronic metering
“Pneuflex” front roller for use on ploughed or tilled ground
Tine Covering Harrow

400AP
Technical details

Transport width 4.00m
Sowing width 4.00m
No. of tines 22
Row spacing 18.18cms
Total weight 2300kgs
Hopper capacity 1000lts
Power requirement 130 hp

Optional extras:

Pilot electronic metering
“Pneuflex” front roller for use on ploughed or tilled ground
Tine Covering Harrow

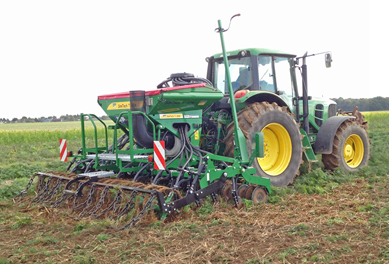

Simtech T-SEM 400AP

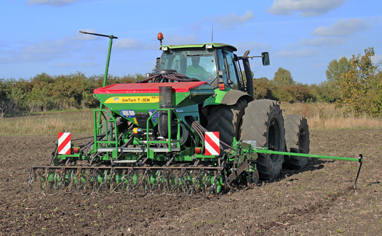

T-SEM 400AP

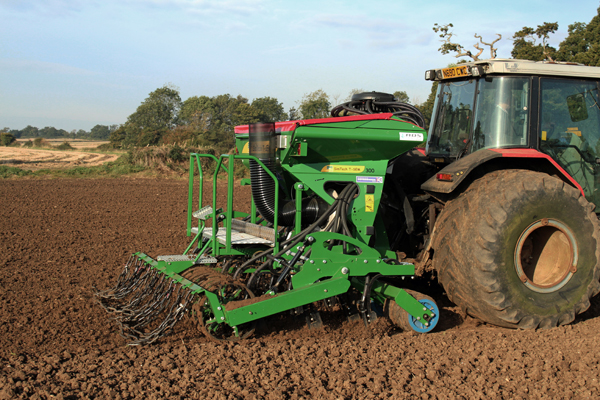

Simtech T-SEM 300P with front roller

T-SEM 300AP
